Sir Michael Uren Hub

View all projects

Fit for science

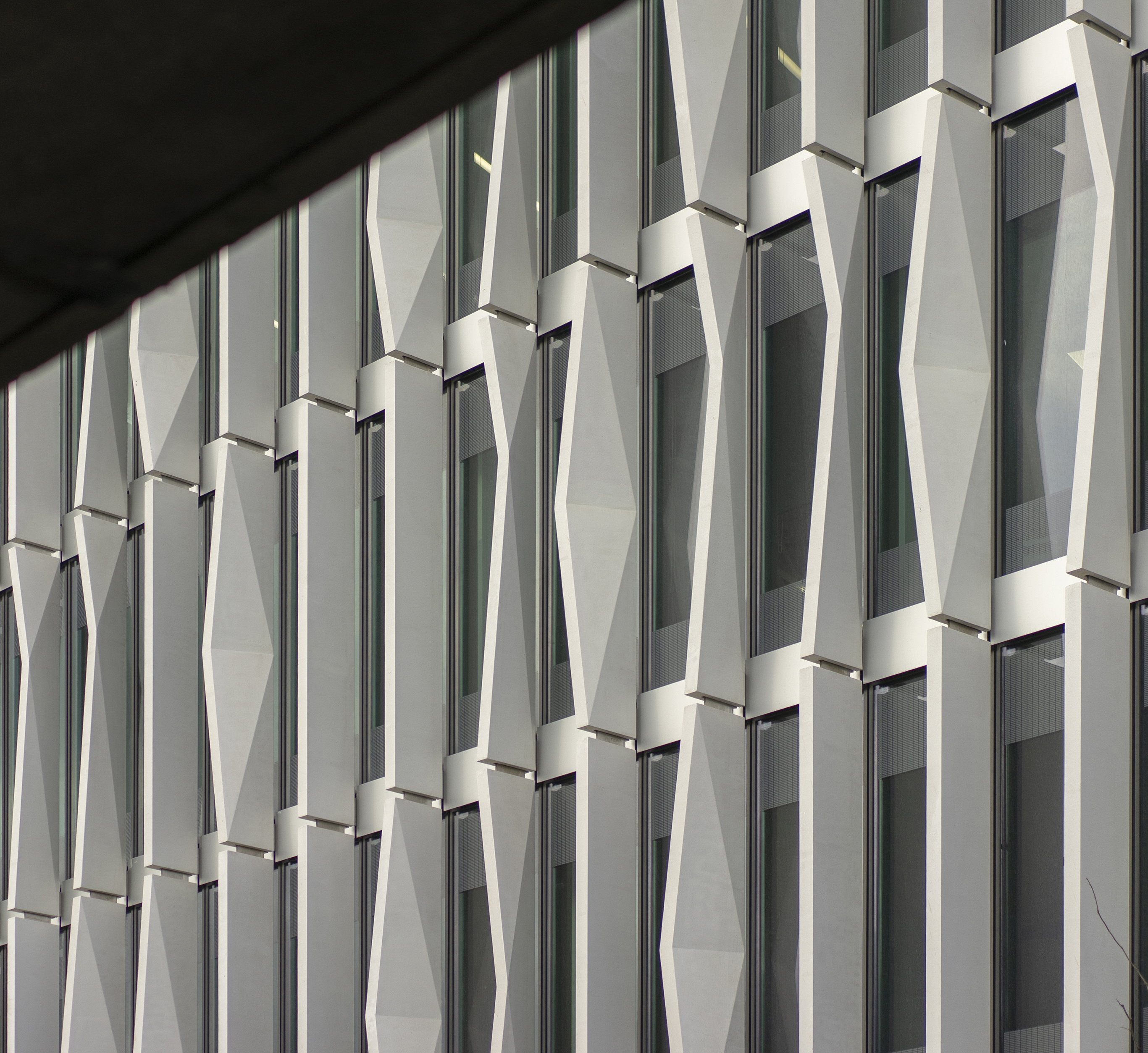

Part lab, part clinic, part classroom, part office, this is a hybrid science building for multiple departments at Imperial College London on its White City campus. Each floor is different, providing flexible and inspiring spaces for cutting-edge translational research at the interface of biomedical sciences and engineering. The Hub's prominent location on the Westway is emphasised by a memorable exterior of 1,300 precast fins. Designed in seven different permutations, the fins have a high content of GGBS - a material that was pioneered by the benefactor himself, the late Sir Michael Uren - to significantly reduce upfront carbon.

Context

Imperial White City is a major new campus for Imperial College London where for the first time they will have the space to pursue a collaborative research agenda, collocating academia, research and business with the aim of developing formal research partnerships and the informal 'serendipitous' encounters from which innovation can emerge.

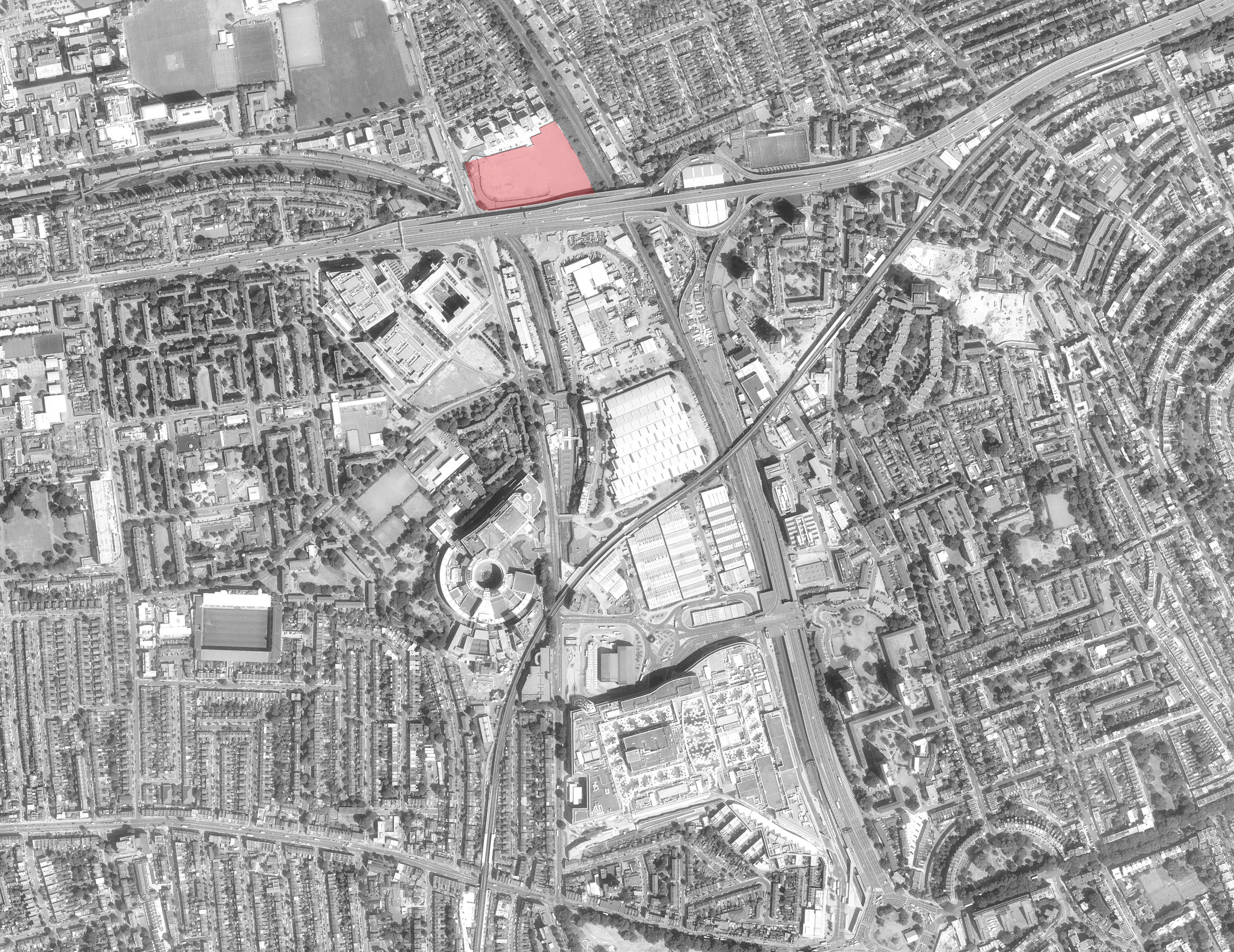

The Sir Michael Uren Hub is sited in an emerging corridor of tall buildings to the north side of the campus, immediately north of the elevated A40 Westway. Our brief was to create a facility capable of attracting and accommodating world class researchers, with efficiently serviced facilities, a pleasant working environment and social spaces that would encourage collaboration and innovation for the benefit of society.

Concept sketch

Challenge

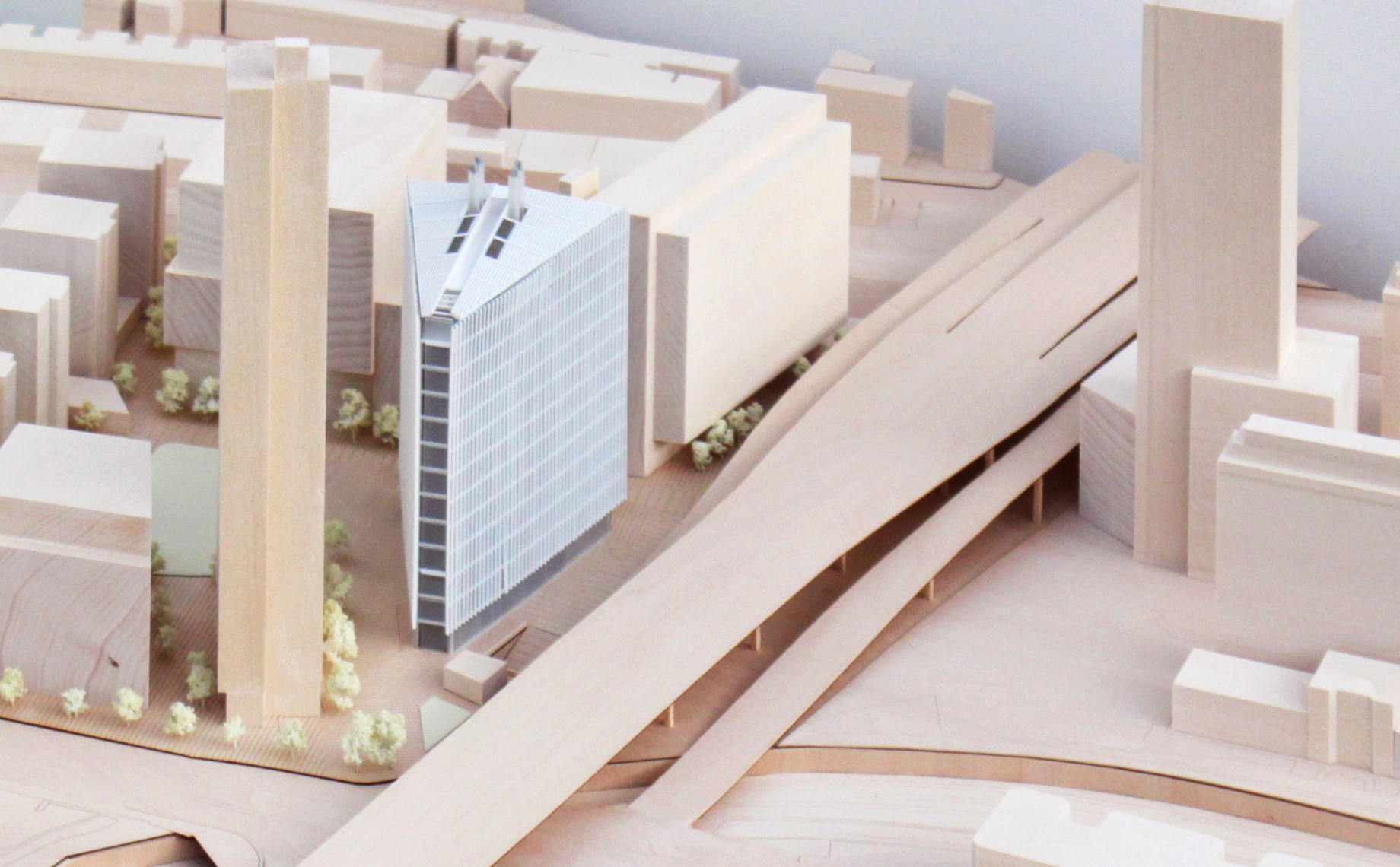

The building's triangular footprint has been configured to create new pedestrian routes in respect of its neighbours whilst maximising the use of available land. The building form and facade needed to produce a distinctive public image on a tight, but highly visible site. Adjacent to the Westway, the facade design of vertical fins achieves this in being eye-catching but also providing a screen of privacy for workers and acting as solar shading.

Imperial School of Public Health

The WestWorks

MediaWorks

Gateway East

Gateway Central

Imperial College White City Campus

Garden House

Concept

Unconventionally for a laboratory, the triangular plot and the area requirement necessitated a high-rise solution. The design makes a virtue of these constraints by proposing a vertical tower of on-floor plant at the constricted end of the triangle. This on-floor strategy has three distinct advantages: it reduces energy consumption by avoiding the need to move large volumes of air up and down a tall building; it allows services to be tailored to the use of each floor; and it creates a central spine, a resilient and beautifully simple solution for the movement of air, goods and people.

The building makes a memorable impression along Wood Lane

1/5

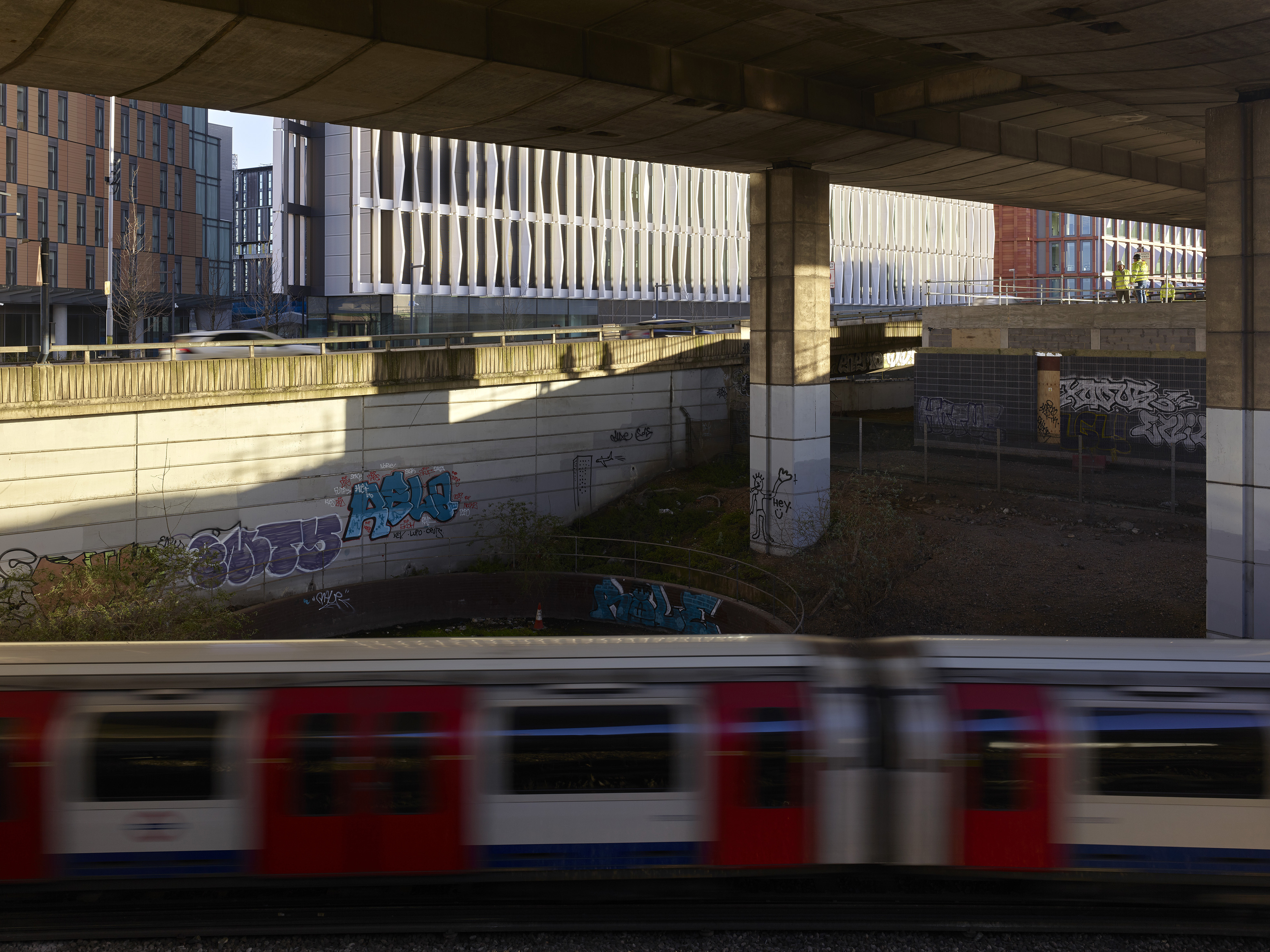

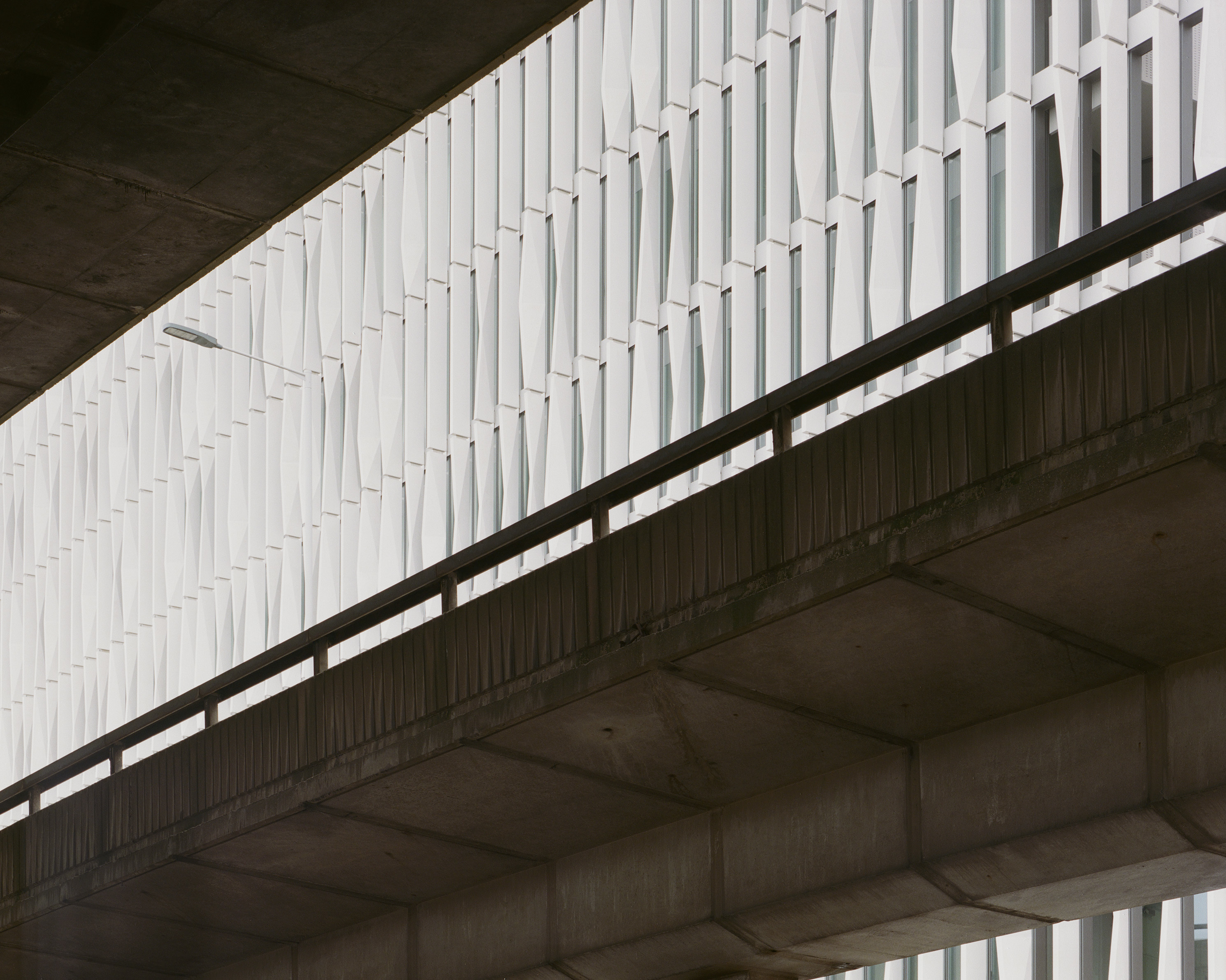

View from under the Westway

2/5

Chimney and contrasting west/north facade treatments

3/5

Within the context of Imperial's White City Campus North

4/5

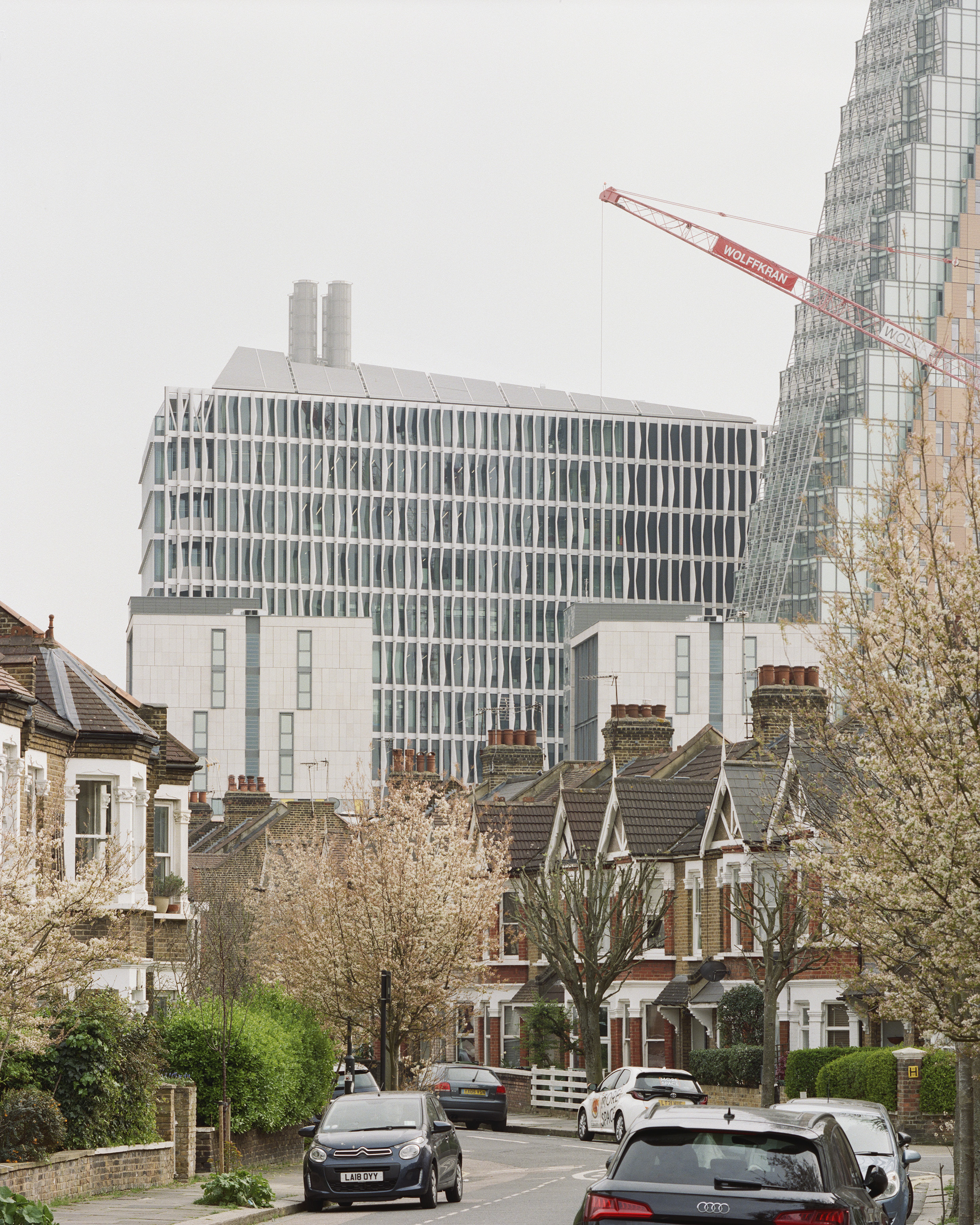

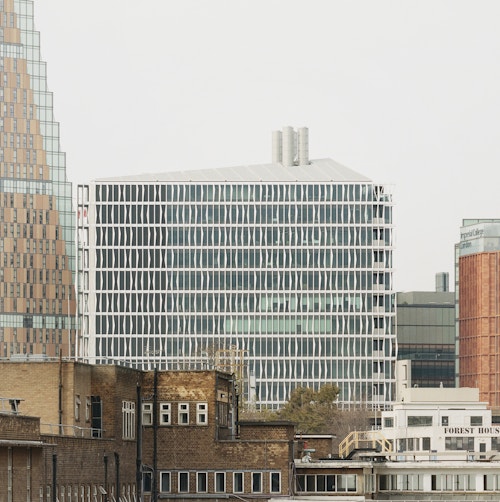

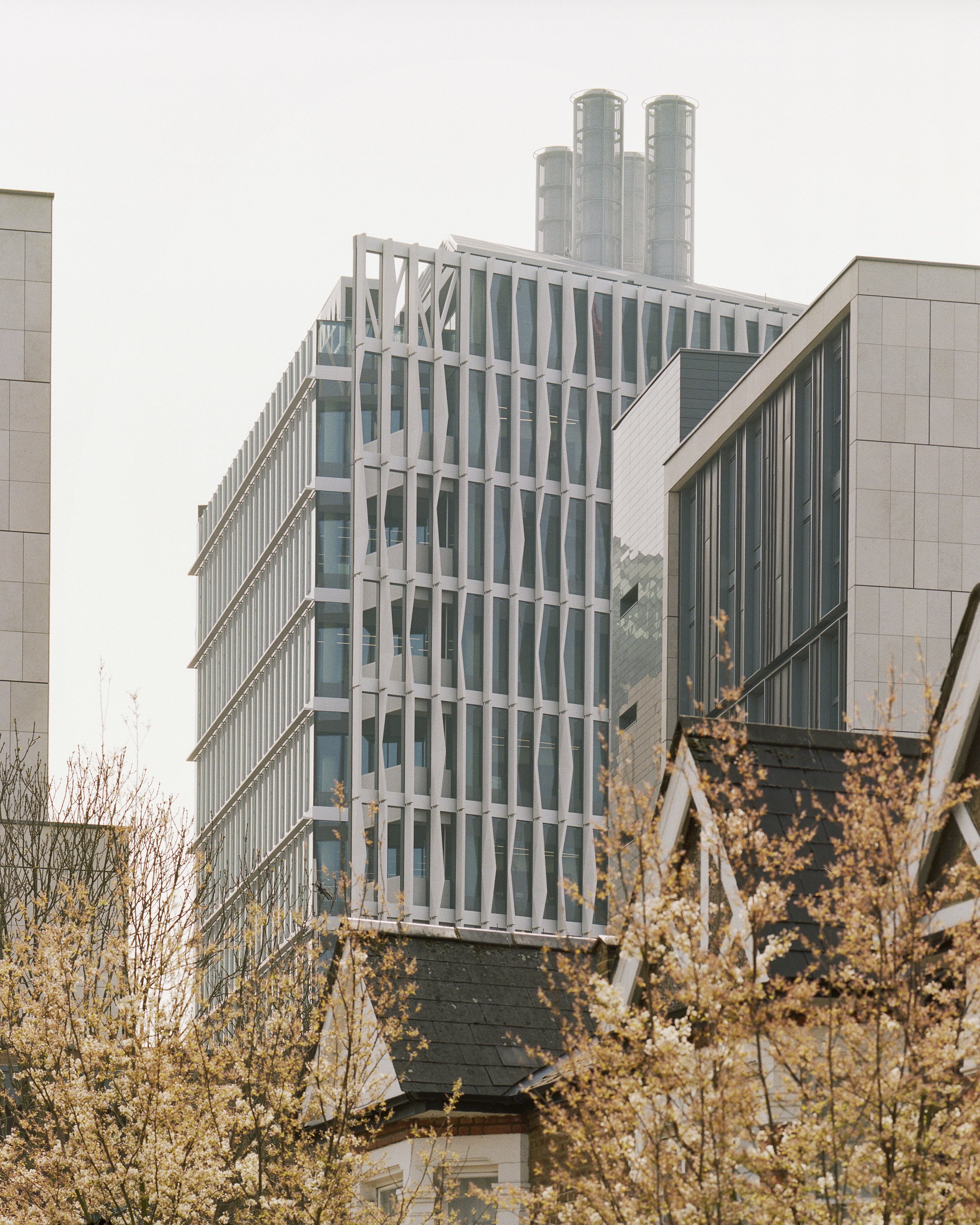

North elevation seen from one of the neighbouring streets

5/5

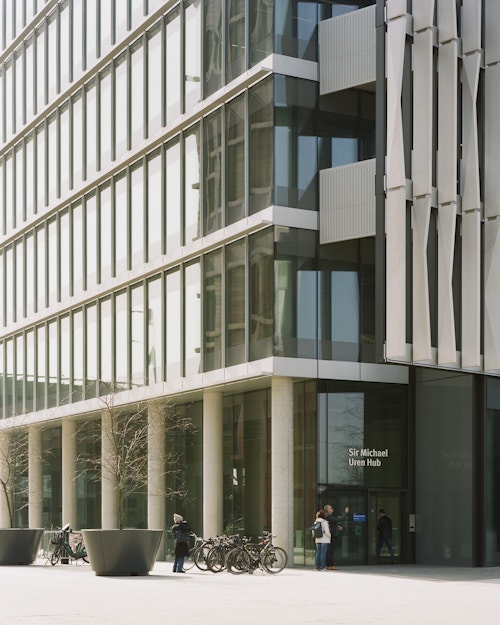

Entrance

Process

Few end users were known at the start, and the brief evolved and expanded through design, construction to post-completion stages. The completed building houses 11 different layouts over 12 floors - a testament to the resilience of the base design.

Early consultations with a user group created a generic 'turnkey' floor plate allowing for open and cellular laboratories, write-up and meeting spaces to cohabit on the same floor. The laboratories have been designed to provide flexibility through a careful balance of wet services and dry areas, and of bespoke serviced and loose furniture. The triangular plan allows a gradient of services and uses: from plant at the apex, through heavily serviced laboratories, to lightly serviced offices, to informal breakout and social spaces at the floor plate's widest point.

As more user groups emerged, more layouts were developed in close consultation with academics, scientists, and staff. The building now houses gait analysis and motion capture labs, augmented reality demonstration facilities, mechanical workshops, nano material deposition equipment, a dementia living lab, clean rooms, as well as tissue culture labs and cold rooms throughout.

A symmetrical pair of entrances lead to a reception, a social space for exhibitions and functions, an adjoining cafe, and a secure entrance to the research floors above. Loading bay and service yard entrances are carefully integrated into the facade.

plant room

cold room

open laboratory

open laboratory

write up space

write up space

lobby

Typical floor plan

1/4

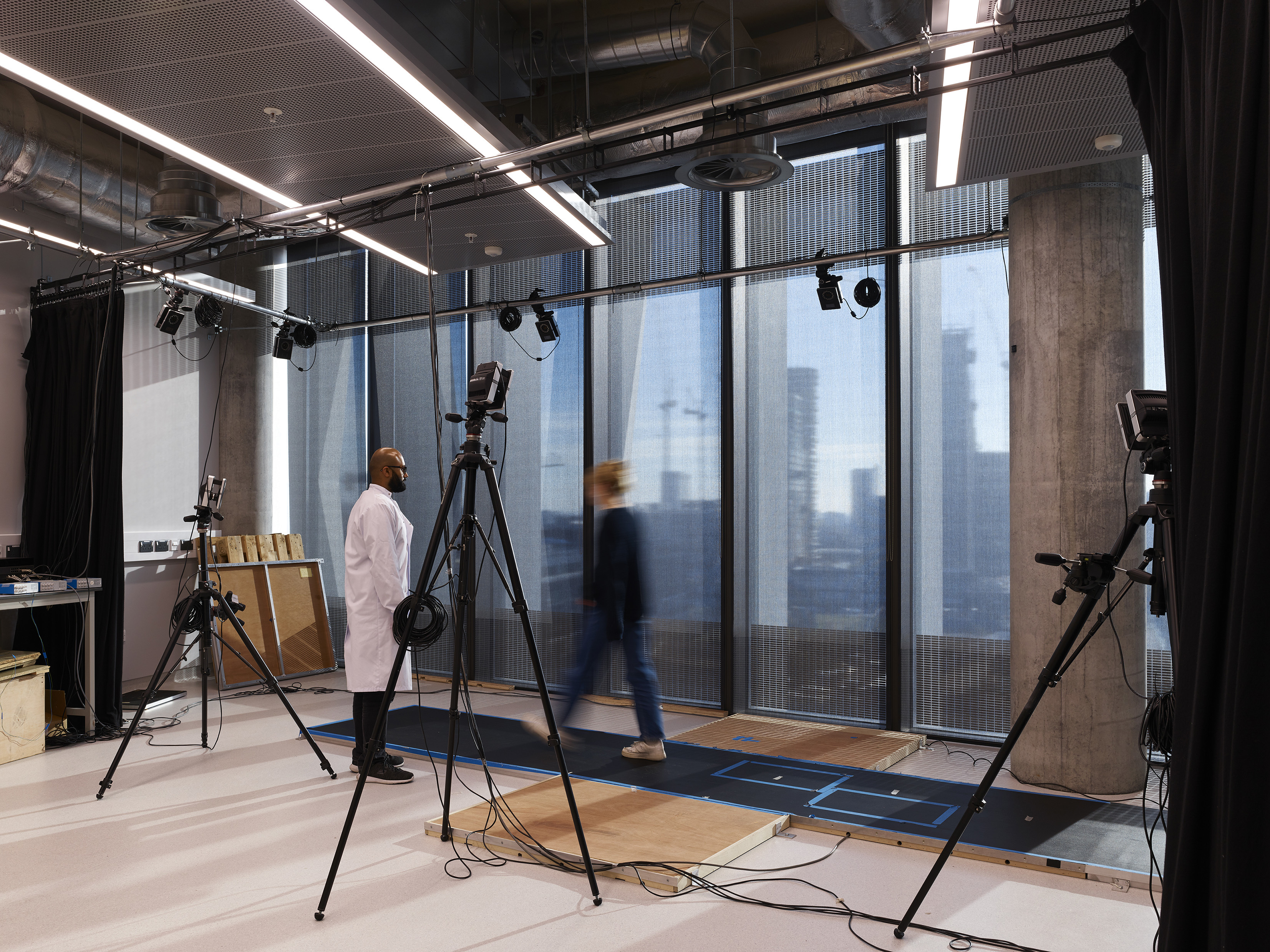

Gait analysis lab

2/4

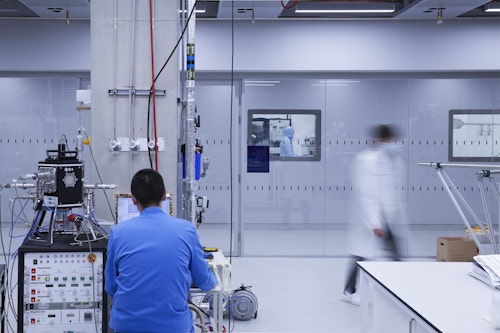

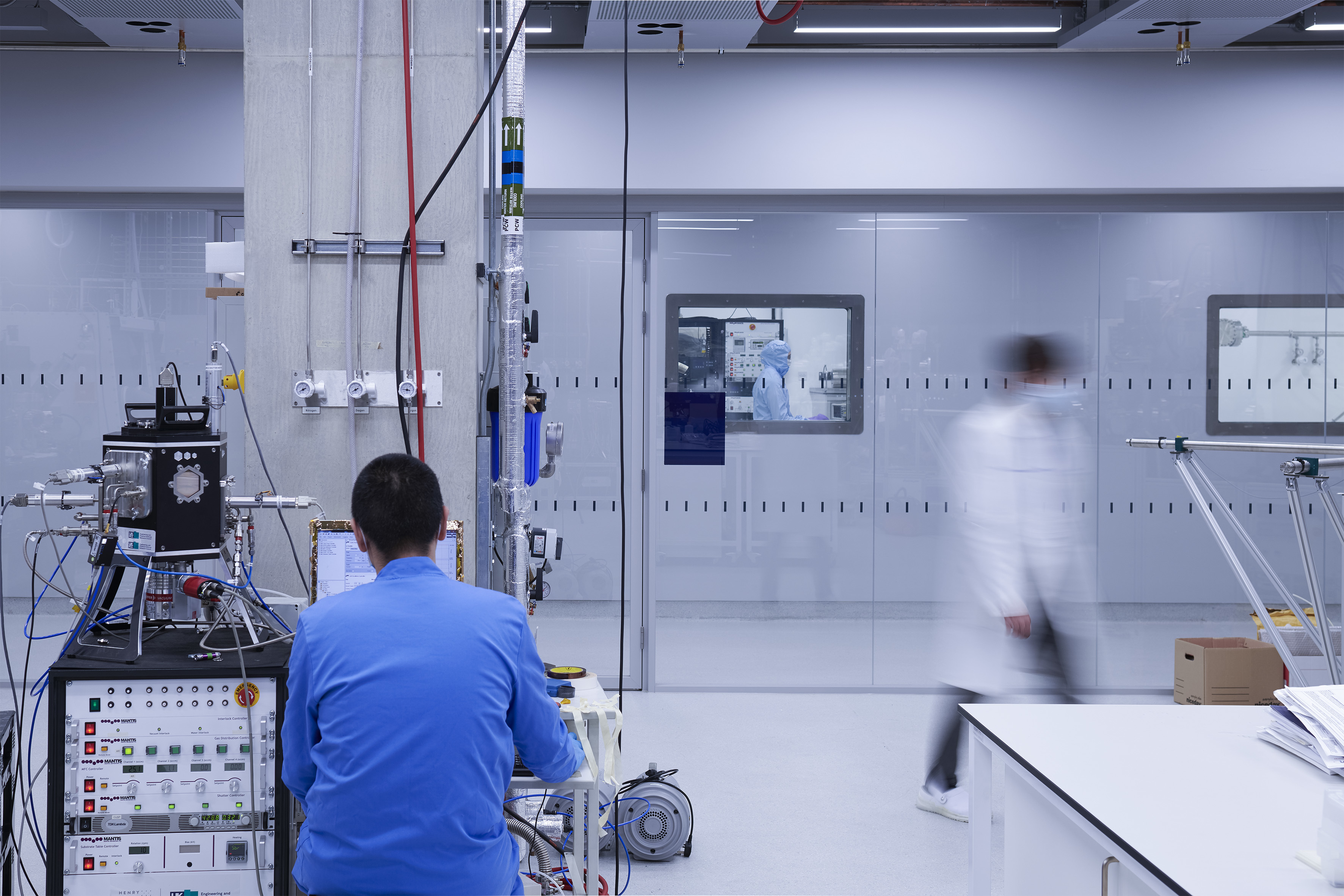

Deposition

3/4

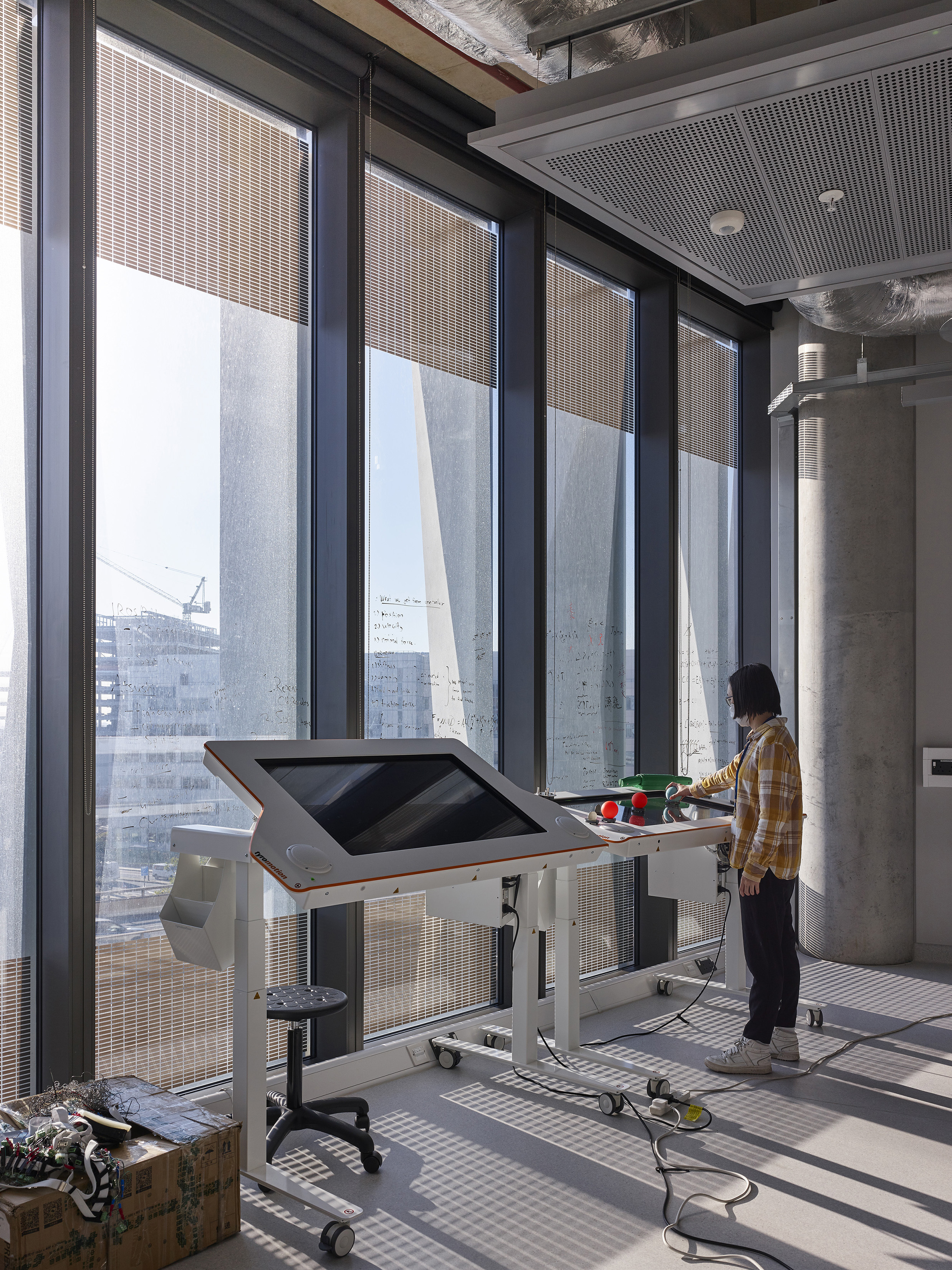

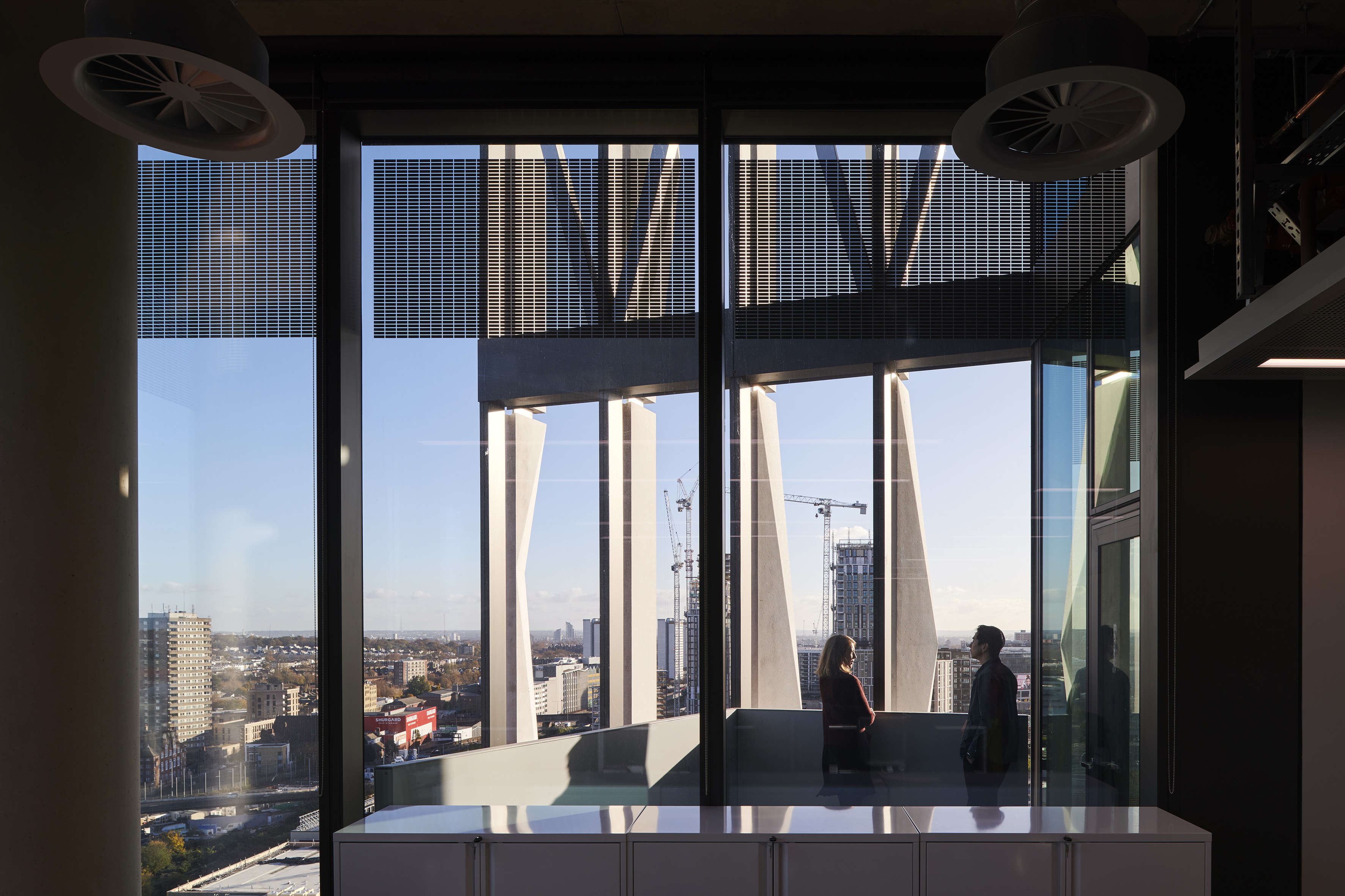

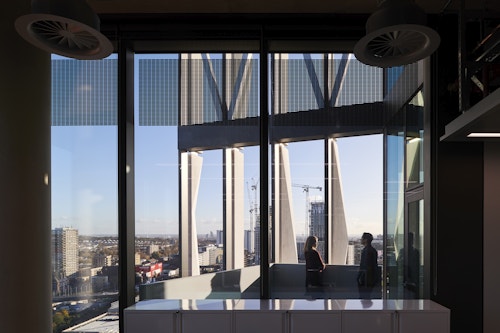

Workplace

4/4

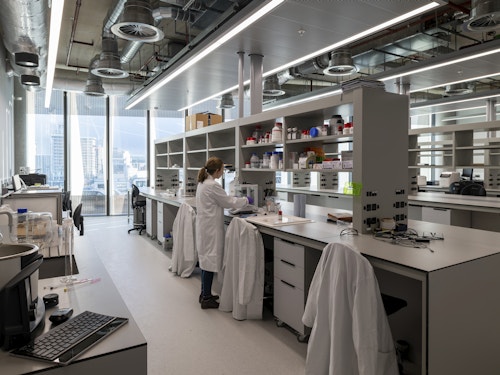

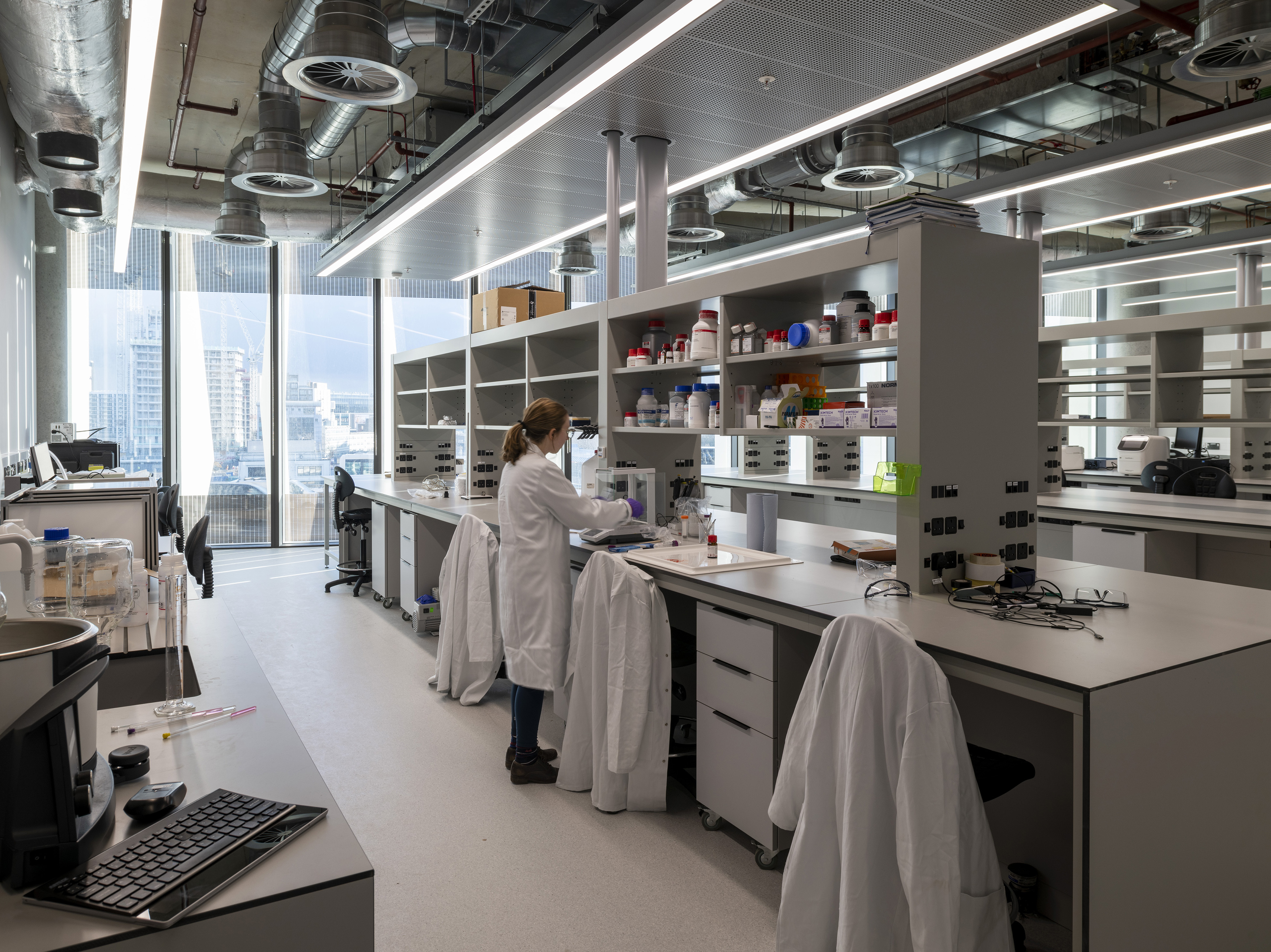

Open lab

1/3

Naturally lit research spaces

2/3

Balcony

3/3

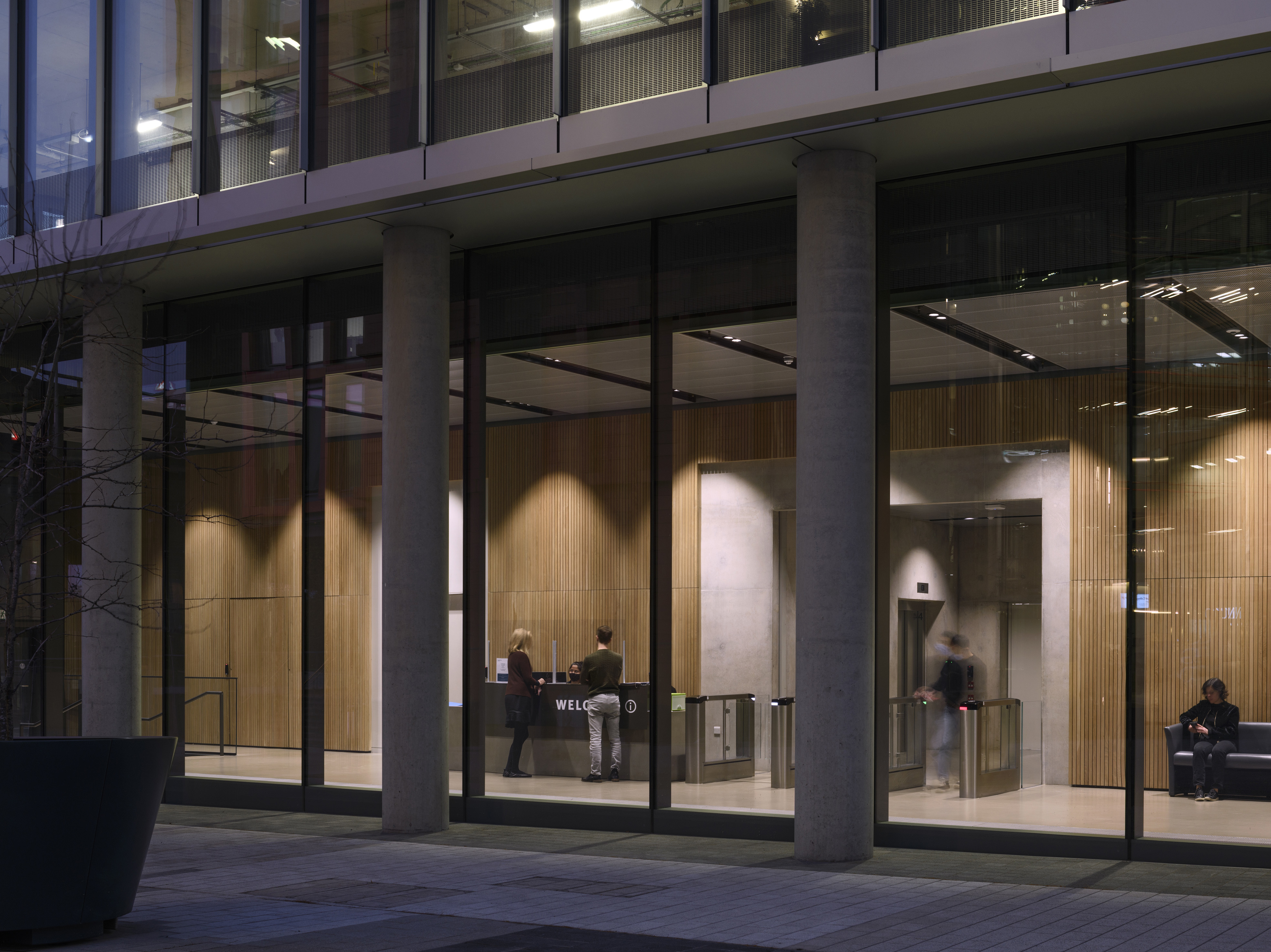

Reception

The Sir Michael Uren Hub is a game-changer for inter-disciplinary research at the engineering and medicine interface. Not only does it provide flexibility, but the design also facilitates interaction through its clever zoning of interaction space, office space, and laboratories. Although users have only just started moving in, relocating from other parts of the Imperial College estate, there is already a real buzz and excitement about this building and how it will enable new ways of working
Prof. Anthony Bull, Head, Department of Bioengineering, Imperial College

Impact

High ceilings and generous windows create calm and pleasant workplaces. Shared circulation and balconies provide spaces to socialise. Presentation and exhibition spaces provide grounds for pitching and exchanging ideas.

The building is now occupied by scientists working on the research, diagnosis, and treatment of a range medical conditions. Research subjects are as diverse as musculoskeletal mechanics, regenerative medicine, cardiovascular science, advanced materials, dementia, air quality and public health.

The presence of Imperial College London has in turn catalysed the development of the White City into a new life sciences cluster and innovation district in London. White City Innovation District was launched in 2022, as the area continues to develop and attract creative and life science businesses to co-locate on campus and on neighbouring White City Place.

The Sir Michael Uren Hub was our first commission for Imperial College London, won through a design competition. It was followed by several commissions for the college; the masterplan for the southerly portion of the White City Campus, a masterplan for their original campus in South Kensington and, the design of the School of Public Health, currently under construction.

Information table

City
London W12
Uses
Education, Health
Client
Imperial College London
Status
Current
Size
18,150 sqm (GIFA)
Environmental credentials
BREEAM Excellent
Awards

BD Higher Education Architect of the Year Award 2021, RIBA London Award 2022

Collaborators
View all collaborators Hide all collaborators

Structure: Curtins

Services: Buro Happold

Cost: Faithful + Gould

Laboratory Planning: Abell Nepp

Photography: James Newton, Rory Gardiner
