HHD exploded axo
![](https://alliesandmorrison.imgix.net/drawings/DRG_HHD_Exploded-Axo.jpg?crop=focalpoint&domain=allies-and-morrison.imgix.net&fit=clip&w=500&h=837.61638733706&q=82&fm=pjpg&fp-x=0.5&fp-y=0.5&ixlib=php-2.1.1)

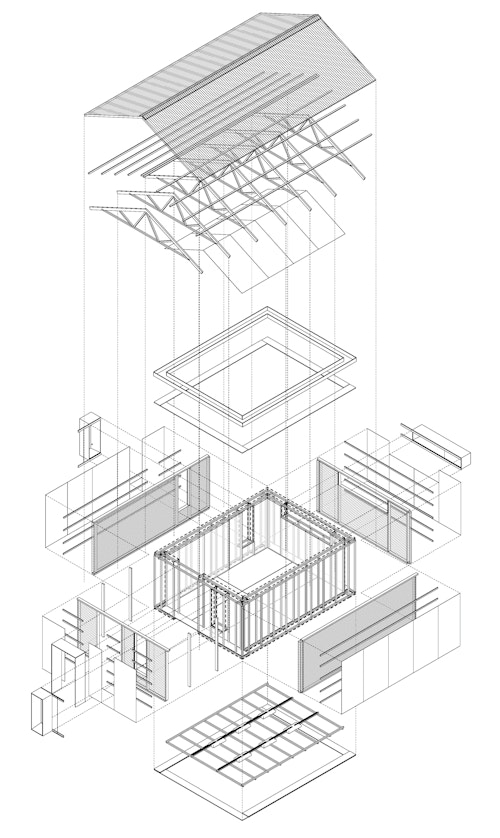

This exploded axonometric drawing illustrates the structural elements required to construct a shelter using dry low tech prefabricated construction methodology. This was prepared by Mark Taylor and Constantino Baranda for a design for refugee camps in Jordan in collaboration with Bath University and UNHCR
